Форум » starterkit.ru » Отладочные платы » SK-AT91SAM9XE512-SIMXXX
Проблема с SD/MMC
AlexShev
Добавлено 01.07.2010 13:59 Редактировалось 01.07.2010 16:18
0
Сообщение: 1
AlexShev
0

Регистрация: 10.07.2009
Прошу Помощи в сл. Проблеме
Есть плата SK-AT91SAM9XE512 купленная гдето год назад.
После покупки платы я точно проверял работу ММС и она работала. Но потом она мне като была не нужна и я туда несмотрел.
Сейчас стал вопрос засунуть на ММС rootfs. Я в полной уверенносте что все работает взялся за работу. Но нетут то было.


Короче вот чем плата меня ругает



Linux version 2.6.24 (root@armmaker) (gcc version 4.2.0 20070413 (prerelease) (CodeSourcery Sourcery G++ Lite 2007q1-10)) #22 Thu Apr 10 09:12:49 MSD 2008
CPU: ARM926EJ-S [41069265] revision 5 (ARMv5TEJ), cr=00053177
Machine: Atmel AT91SAM9260-EK
Memory policy: ECC disabled, Data cache writeback
Clocks: CPU 200 MHz, master 100 MHz, main 12.000 MHz
CPU0: D VIVT write-back cache
CPU0: I cache: 8192 bytes, associativity 4, 32 byte lines, 64 sets
CPU0: D cache: 8192 bytes, associativity 4, 32 byte lines, 64 sets
Built 1 zonelists in Zone order, mobility grouping on. Total pages: 8128
Kernel command line: root=/dev/ram0 rw initrd=0x21100000,0x500000 console=ttyS0,115200 mem=32M
AT91: 96 gpio irqs in 3 banks
PID hash table entries: 128 (order: 7, 512 bytes)
Console: colour dummy device 80x30
console [ttyS0] enabled
Dentry cache hash table entries: 4096 (order: 2, 16384 bytes)
Inode-cache hash table entries: 2048 (order: 1, 8192 bytes)
Memory: 32MB = 32MB total
Memory: 24572KB available (2408K code, 226K data, 108K init)
Mount-cache hash table entries: 512
CPU: Testing write buffer coherency: ok
net_namespace: 64 bytes
NET: Registered protocol family 16
SCSI subsystem initialized
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
Time: pit clocksource has been installed.
NET: Registered protocol family 2
IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
TCP established hash table entries: 1024 (order: 1, 8192 bytes)
TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
TCP: Hash tables configured (established 1024 bind 1024)
TCP reno registered
checking if image is initramfs...it isn't (no cpio magic); looks like an initrd
Freeing initrd memory: 5120K
NetWinder Floating Point Emulator V0.97 (double precision)
JFFS2 version 2.2. (NAND) (SUMMARY) В© 2001-2006 Red Hat, Inc.
io scheduler noop registered
io scheduler anticipatory registered (default)
atmel_usart.0: ttyS0 at MMIO 0xfefff200 (irq = 1) is a ATMEL_SERIAL
atmel_usart.1: ttyS1 at MMIO 0xfffb0000 (irq = 6) is a ATMEL_SERIAL
atmel_usart.2: ttyS2 at MMIO 0xfffb4000 (irq = 7) is a ATMEL_SERIAL
RAMDISK driver initialized: 16 RAM disks of 8192K size 1024 blocksize
loop: module loaded
ssc ssc.0: Atmel SSC device at 0xc2870000 (irq 14)
MACB_mii_bus: probed
eth0: Atmel MACB at 0xfffc4000 irq 21 (00:1f:f2:00:00:00)
eth0: attached PHY driver [Generic PHY] (mii_bus:phy_addr=ffffffff:01, irq=-1)
Driver 'sd' needs updating - please use bus_type methods
atmel_spi atmel_spi.0: Atmel SPI Controller at 0xfffc8000 (irq 12)
mtd_dataflash spi0.0: AT45DB321x (4224 KBytes)
usbmon: debugfs is not available
at91_ohci at91_ohci: AT91 OHCI
at91_ohci at91_ohci: new USB bus registered, assigned bus number 1
at91_ohci at91_ohci: irq 20, io mem 0x00500000
usb usb1: configuration #1 chosen from 1 choice
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 2 ports detected
Initializing USB Mass Storage driver...
usbcore: registered new interface driver usb-storage
USB Mass Storage support registered.
udc: at91_udc version 3 May 2006
mice: PS/2 mouse device common for all mice
i2c /dev entries driver
usbcore: registered new interface driver usbhid
drivers/hid/usbhid/hid-core.c: v2.6:USB HID core driver
TCP cubic registered
NET: Registered protocol family 1
NET: Registered protocol family 17
RPC: Registered udp transport module.
RPC: Registered tcp transport module.
RAMDISK: Compressed image found at block 0
EXT2-fs warning: maximal mount count reached, running e2fsck is recommended
VFS: Mounted root (ext2 filesystem).
Freeing init memory: 108K


Starting system...
at91adc: Loaded module
gpiodev: GPIO_DEV Start
mount mmc...
umount: can't umount /mnt/mmc: Invalid argument
mount: mounting /dev/mmc1 on /mnt/mmc failed: No such device or address
mount usb...
mount: mounting /dev/sda1 on /mnt/usb failed: No such device or address




# dmesg
Linux version 2.6.24 (root@armmaker) (gcc version 4.2.0 20070413 (prerelease) (CodeSourcery Sourcery G++ Lite 2007q1-10)) #22 Thu Apr 10 09:12:49 MSD 2008
CPU: ARM926EJ-S [41069265] revision 5 (ARMv5TEJ), cr=00053177
Machine: Atmel AT91SAM9260-EK
Memory policy: ECC disabled, Data cache writeback
On node 0 totalpages: 8192
DMA zone: 64 pages used for memmap
DMA zone: 0 pages reserved
DMA zone: 8128 pages, LIFO batch:0
Normal zone: 0 pages used for memmap
Movable zone: 0 pages used for memmap
Clocks: CPU 200 MHz, master 100 MHz, main 12.000 MHz
CPU0: D VIVT write-back cache
CPU0: I cache: 8192 bytes, associativity 4, 32 byte lines, 64 sets
CPU0: D cache: 8192 bytes, associativity 4, 32 byte lines, 64 sets
Built 1 zonelists in Zone order, mobility grouping on. Total pages: 8128
Kernel command line: root=/dev/ram0 rw initrd=0x21100000,0x500000 console=ttyS0,115200 mem=32M
AT91: 96 gpio irqs in 3 banks
PID hash table entries: 128 (order: 7, 512 bytes)
Console: colour dummy device 80x30
console [ttyS0] enabled
Dentry cache hash table entries: 4096 (order: 2, 16384 bytes)
Inode-cache hash table entries: 2048 (order: 1, 8192 bytes)
Memory: 32MB = 32MB total
Memory: 24572KB available (2408K code, 226K data, 108K init)
Calibrating delay loop... 99.73 BogoMIPS (lpj=498688)
Mount-cache hash table entries: 512
CPU: Testing write buffer coherency: ok
net_namespace: 64 bytes
NET: Registered protocol family 16
SCSI subsystem initialized
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
Time: pit clocksource has been installed.
NET: Registered protocol family 2
IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
TCP established hash table entries: 1024 (order: 1, 8192 bytes)
TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
TCP: Hash tables configured (established 1024 bind 1024)
TCP reno registered
checking if image is initramfs...it isn't (no cpio magic); looks like an initrd
Freeing initrd memory: 5120K
NetWinder Floating Point Emulator V0.97 (double precision)
JFFS2 version 2.2. (NAND) (SUMMARY) В© 2001-2006 Red Hat, Inc.
io scheduler noop registered
io scheduler anticipatory registered (default)
atmel_usart.0: ttyS0 at MMIO 0xfefff200 (irq = 1) is a ATMEL_SERIAL
atmel_usart.1: ttyS1 at MMIO 0xfffb0000 (irq = 6) is a ATMEL_SERIAL
atmel_usart.2: ttyS2 at MMIO 0xfffb4000 (irq = 7) is a ATMEL_SERIAL
RAMDISK driver initialized: 16 RAM disks of 8192K size 1024 blocksize
loop: module loaded
ssc ssc.0: Atmel SSC device at 0xc2870000 (irq 14)
MACB_mii_bus: probed
eth0: Atmel MACB at 0xfffc4000 irq 21 (00:1f:f2:00:00:00)
eth0: attached PHY driver [Generic PHY] (mii_bus:phy_addr=ffffffff:01, irq=-1)
Driver 'sd' needs updating - please use bus_type methods
atmel_spi atmel_spi.0: Atmel SPI Controller at 0xfffc8000 (irq 12)
mtd_dataflash spi0.0: AT45DB321x (4224 KBytes)
usbmon: debugfs is not available
ohci_hcd: 2006 August 04 USB 1.1 'Open' Host Controller (OHCI) Driver
at91_ohci at91_ohci: AT91 OHCI
at91_ohci at91_ohci: new USB bus registered, assigned bus number 1
at91_ohci at91_ohci: irq 20, io mem 0x00500000
usb usb1: configuration #1 chosen from 1 choice
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 2 ports detected
Initializing USB Mass Storage driver...
usbcore: registered new interface driver usb-storage
USB Mass Storage support registered.
udc: at91_udc version 3 May 2006
mice: PS/2 mouse device common for all mice
i2c /dev entries driver
usbcore: registered new interface driver usbhid
drivers/hid/usbhid/hid-core.c: v2.6:USB HID core driver
TCP cubic registered
NET: Registered protocol family 1
NET: Registered protocol family 17
RPC: Registered udp transport module.
RPC: Registered tcp transport module.
RAMDISK: Compressed image found at block 0
EXT2-fs warning: maximal mount count reached, running e2fsck is recommended
VFS: Mounted root (ext2 filesystem).
Freeing init memory: 108K
mmc0: clock 0Hz busmode 1 powermode 0 cs 0 Vdd 0 width 0 timing 0
MMC: Setting controller bus width to 1
Added MCI driver
mmc0: clock 0Hz busmode 1 powermode 1 cs 0 Vdd 21 width 0 timing 0
MMC: Setting controller bus width to 1
mmc0: clock 375000Hz busmode 1 powermode 2 cs 0 Vdd 21 width 0 timing 0
clkdiv = 133. mcck = 373134
MMC: Setting controller bus width to 1
mmc0: clock 375000Hz busmode 1 powermode 2 cs 1 Vdd 21 width 0 timing 0
clkdiv = 133. mcck = 373134
MMC: Setting controller bus width to 1
mmc0: starting CMD0 arg 00000000 flags 000000c0
Sending command 0 as 00000800, arg = 00000000, blocks = 0, length = 0 (MR = 00009B85)
MCI irq: status = 0000C0E5, C07F0001, 00000001
Command ready
Completed command
Status = 0000C0E5 [00000000 00000000 00000000 00000000]
mmc0: req done (CMD0): 0: 00000000 00000000 00000000 00000000
mmc0: clock 375000Hz busmode 1 powermode 2 cs 0 Vdd 21 width 0 timing 0
clkdiv = 133. mcck = 373134
MMC: Setting controller bus width to 1
mmc0: starting CMD8 arg 000001aa flags 000002f5
Sending command 8 as 00001848, arg = 000001AA, blocks = 0, length = 0 (MR = 00009B85)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 8, retries = 0)
mmc0: req done (CMD8): -110: 00000000 00000000 00000000 00000000
mmc0: starting CMD5 arg 00000000 flags 000002e1
Sending command 5 as 00001845, arg = 00000000, blocks = 0, length = 0 (MR = 00009B85)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 5, retries = 3)
mmc0: req failed (CMD5): -110, retrying...
Sending command 5 as 00001845, arg = 00000000, blocks = 0, length = 0 (MR = 00009B85)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 5, retries = 2)
mmc0: req failed (CMD5): -110, retrying...
Sending command 5 as 00001845, arg = 00000000, blocks = 0, length = 0 (MR = 00009B85)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 5, retries = 1)
mmc0: req failed (CMD5): -110, retrying...
Sending command 5 as 00001845, arg = 00000000, blocks = 0, length = 0 (MR = 00009B85)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 5, retries = 0)
mmc0: req done (CMD5): -110: 00000000 00000000 00000000 00000000
mmc0: starting CMD55 arg 00000000 flags 000000f5
Sending command 55 as 00001877, arg = 00000000, blocks = 0, length = 0 (MR = 00009B85)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 55, retries = 0)
mmc0: req done (CMD55): -110: 00000000 00000000 00000000 00000000
mmc0: starting CMD55 arg 00000000 flags 000000f5
Sending command 55 as 00001877, arg = 00000000, blocks = 0, length = 0 (MR = 00009B85)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 55, retries = 0)
mmc0: req done (CMD55): -110: 00000000 00000000 00000000 00000000
mmc0: starting CMD55 arg 00000000 flags 000000f5
Sending command 55 as 00001877, arg = 00000000, blocks = 0, length = 0 (MR = 00009B85)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 55, retries = 0)
mmc0: req done (CMD55): -110: 00000000 00000000 00000000 00000000
mmc0: starting CMD55 arg 00000000 flags 000000f5
Sending command 55 as 00001877, arg = 00000000, blocks = 0, length = 0 (MR = 00009B85)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 55, retries = 0)
mmc0: req done (CMD55): -110: 00000000 00000000 00000000 00000000
mmc0: starting CMD1 arg 00000000 flags 000000e1
Clearing timeout
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Sending command 1 as 00001841, arg = 00000000, blocks = 0, length = 0 (MR = 00009B85)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 1, retries = 0)
mmc0: req done (CMD1): -110: 00000000 00000000 00000000 00000000
mmc0: clock 0Hz busmode 1 powermode 0 cs 0 Vdd 0 width 0 timing 0
MMC: Setting controller bus width to 1
at91adc: Loaded module
gpiodev: GPIO_DEV Start
eth0: link up (100/Full)

Похожие темы из етого форума я пересмотрел и все рекомендации которые там давались перепробовал. К положительному результату не привели. Поетому и решил создать новую тему.
Спуститься к концу Подняться к началу
Персональная информация
Pavel Ivanchenko
Добавлено 01.07.2010 14:28 Сообщение: 2
Pavel Ivanchenko
Admin
4.39

Пункты: 92788
Регистрация: 24.03.2009
Пол: Мужчина

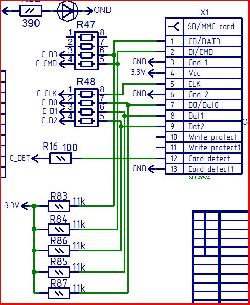

Приведите схематику к такому виду:

Должно излечиться.
Спуститься к концу Подняться к началу
Персональная информация
AlexShev
Добавлено 01.07.2010 15:38 Сообщение: 3
AlexShev
0

Регистрация: 10.07.2009
Извените я сразу не увидел что раздел был перенесен поетому создал опять

По схеме сейчас посмотрю.
Спуститься к концу Подняться к началу
Персональная информация
AlexShev
Добавлено 01.07.2010 15:40 Сообщение: 4
AlexShev
0

Регистрация: 10.07.2009
Цитата
Приведите схематику к такому виду:

Должно излечиться.


Я так понимаю нужно установить две резисторные матрицы?
Спуститься к концу Подняться к началу
Персональная информация
Pavel Ivanchenko
Добавлено 01.07.2010 16:16 Редактировалось 01.07.2010 16:18 Сообщение: 5
Pavel Ivanchenko
Admin
4.39

Пункты: 92788
Регистрация: 24.03.2009
Пол: Мужчина
Просто навесным монтажем добавьте резисторы ...
Чипы 0805 вполне нормально вписываются, прямо на пины SD держателя.
Спуститься к концу Подняться к началу
Персональная информация
AlexShev
Добавлено 01.07.2010 17:34 Сообщение: 6
AlexShev
0

Регистрация: 10.07.2009
Цитата
Просто навесным монтажем добавьте резисторы ...
Чипы 0805 вполне нормально вписываются, прямо на пины SD держателя.


Вы имеете в виду подтягивающие резимторы?

Както странно у меня на плате почемуто небыло и матриц R47 R48 ???
Как оно могло работать? даже теоретически недолжно было.
Спуститься к концу Подняться к началу
Персональная информация
Pavel Ivanchenko
Добавлено 01.07.2010 17:40 Сообщение: 7
Pavel Ivanchenko
Admin
4.39

Пункты: 92788
Регистрация: 24.03.2009
Пол: Мужчина
Я про подтяжки с самого начала и говорю (на текущие платы их навесным монтажем ставим, в противном случае с половиной карт работать не станет).

Резистивных матриц на платах никогда не стояло (они на "всякий случай" заложены), смотрите внимательней печатку, там КЗ линии на этих тарицах на самой печатке выполнены.
Спуститься к концу Подняться к началу
Персональная информация
AlexShev
Добавлено 01.07.2010 18:06 Сообщение: 8
AlexShev
0

Регистрация: 10.07.2009
Запаял подтяжки
Но к сожелению к положительному результату ето не привело

# dmesg
Linux version 2.6.24 (root@armmaker) (gcc version 4.2.0 20070413 (prerelease) (CodeSourcery Sourcery G++ Lite 2007q1-10)) #23 Mon Jul 27 03:03:16 MSD 2009
CPU: ARM926EJ-S [41069265] revision 5 (ARMv5TEJ), cr=00053177
Machine: Atmel AT91SAM9260-EK
Memory policy: ECC disabled, Data cache writeback
On node 0 totalpages: 8192
DMA zone: 64 pages used for memmap
DMA zone: 0 pages reserved
DMA zone: 8128 pages, LIFO batch:0
Normal zone: 0 pages used for memmap
Movable zone: 0 pages used for memmap
Clocks: CPU 200 MHz, master 100 MHz, main 12.000 MHz
CPU0: D VIVT write-back cache
CPU0: I cache: 8192 bytes, associativity 4, 32 byte lines, 64 sets
CPU0: D cache: 8192 bytes, associativity 4, 32 byte lines, 64 sets
Built 1 zonelists in Zone order, mobility grouping on. Total pages: 8128
Kernel command line: root=/dev/ram0 rw initrd=0x21100000,0x500000 console=ttyS0,115200 mem=32M
AT91: 96 gpio irqs in 3 banks
PID hash table entries: 128 (order: 7, 512 bytes)
Console: colour dummy device 80x30
console [ttyS0] enabled
Dentry cache hash table entries: 4096 (order: 2, 16384 bytes)
Inode-cache hash table entries: 2048 (order: 1, 8192 bytes)
Memory: 32MB = 32MB total
Memory: 24572KB available (2408K code, 226K data, 108K init)
Calibrating delay loop... 99.73 BogoMIPS (lpj=498688)
Mount-cache hash table entries: 512
CPU: Testing write buffer coherency: ok
net_namespace: 64 bytes
NET: Registered protocol family 16
SCSI subsystem initialized
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
Time: pit clocksource has been installed.
NET: Registered protocol family 2
IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
TCP established hash table entries: 1024 (order: 1, 8192 bytes)
TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
TCP: Hash tables configured (established 1024 bind 1024)
TCP reno registered
checking if image is initramfs...it isn't (no cpio magic); looks like an initrd
Freeing initrd memory: 5120K
NetWinder Floating Point Emulator V0.97 (double precision)
JFFS2 version 2.2. (NAND) (SUMMARY) В© 2001-2006 Red Hat, Inc.
io scheduler noop registered
io scheduler anticipatory registered (default)
atmel_usart.0: ttyS0 at MMIO 0xfefff200 (irq = 1) is a ATMEL_SERIAL
atmel_usart.1: ttyS1 at MMIO 0xfffb0000 (irq = 6) is a ATMEL_SERIAL
atmel_usart.2: ttyS2 at MMIO 0xfffb4000 (irq = 7) is a ATMEL_SERIAL
atmel_usart.3: ttyS3 at MMIO 0xfffd0000 (irq = 23) is a ATMEL_SERIAL
RAMDISK driver initialized: 16 RAM disks of 8192K size 1024 blocksize
loop: module loaded
ssc ssc.0: Atmel SSC device at 0xc2878000 (irq 14)
MACB_mii_bus: probed
eth0: Atmel MACB at 0xfffc4000 irq 21 (00:1f:f2:00:00:00)
eth0: attached PHY driver [Generic PHY] (mii_bus:phy_addr=ffffffff:01, irq=-1)
Driver 'sd' needs updating - please use bus_type methods
atmel_spi atmel_spi.0: Atmel SPI Controller at 0xfffc8000 (irq 12)
mtd_dataflash spi0.0: AT45DB321x (4224 KBytes)
usbmon: debugfs is not available
ohci_hcd: 2006 August 04 USB 1.1 'Open' Host Controller (OHCI) Driver
at91_ohci at91_ohci: AT91 OHCI
at91_ohci at91_ohci: new USB bus registered, assigned bus number 1
at91_ohci at91_ohci: irq 20, io mem 0x00500000
usb usb1: configuration #1 chosen from 1 choice
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 2 ports detected
Initializing USB Mass Storage driver...
usbcore: registered new interface driver usb-storage
USB Mass Storage support registered.
udc: at91_udc version 3 May 2006
mice: PS/2 mouse device common for all mice
i2c /dev entries driver
usbcore: registered new interface driver usbhid
drivers/hid/usbhid/hid-core.c: v2.6:USB HID core driver
TCP cubic registered
NET: Registered protocol family 1
NET: Registered protocol family 17
RPC: Registered udp transport module.
RPC: Registered tcp transport module.
RAMDISK: Compressed image found at block 0
EXT2-fs warning: maximal mount count reached, running e2fsck is recommended
VFS: Mounted root (ext2 filesystem).
Freeing init memory: 108K
mmc0: clock 0Hz busmode 1 powermode 0 cs 0 Vdd 0 width 0 timing 0
MMC: Setting controller bus width to 1
Added MCI driver
mmc0: clock 0Hz busmode 1 powermode 1 cs 0 Vdd 21 width 0 timing 0
MMC: Setting controller bus width to 1
mmc0: clock 375000Hz busmode 1 powermode 2 cs 0 Vdd 21 width 0 timing 0
clkdiv = 133. mcck = 373134
MMC: Setting controller bus width to 1
mmc0: clock 375000Hz busmode 1 powermode 2 cs 1 Vdd 21 width 0 timing 0
clkdiv = 133. mcck = 373134
MMC: Setting controller bus width to 1
mmc0: starting CMD0 arg 00000000 flags 000000c0
Sending command 0 as 00000800, arg = 00000000, blocks = 0, length = 0 (MR = 00009BCF)
MCI irq: status = 0000C0E5, C07F0001, 00000001
Command ready
Completed command
Status = 0000C0E5 [00000000 00000000 00000000 00000000]
mmc0: req done (CMD0): 0: 00000000 00000000 00000000 00000000
mmc0: clock 375000Hz busmode 1 powermode 2 cs 0 Vdd 21 width 0 timing 0
clkdiv = 133. mcck = 373134
MMC: Setting controller bus width to 1
mmc0: starting CMD8 arg 000001aa flags 000002f5
Sending command 8 as 00001848, arg = 000001AA, blocks = 0, length = 0 (MR = 00009BCF)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 8, retries = 0)
mmc0: req done (CMD8): -110: 00000000 00000000 00000000 00000000
mmc0: starting CMD5 arg 00000000 flags 000002e1
Sending command 5 as 00001845, arg = 00000000, blocks = 0, length = 0 (MR = 00009BCF)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 5, retries = 3)
mmc0: req failed (CMD5): -110, retrying...
Sending command 5 as 00001845, arg = 00000000, blocks = 0, length = 0 (MR = 00009BCF)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 5, retries = 2)
mmc0: req failed (CMD5): -110, retrying...
Sending command 5 as 00001845, arg = 00000000, blocks = 0, length = 0 (MR = 00009BCF)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 5, retries = 1)
mmc0: req failed (CMD5): -110, retrying...
Sending command 5 as 00001845, arg = 00000000, blocks = 0, length = 0 (MR = 00009BCF)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 5, retries = 0)
mmc0: req done (CMD5): -110: 00000000 00000000 00000000 00000000
mmc0: starting CMD55 arg 00000000 flags 000000f5
Sending command 55 as 00001877, arg = 00000000, blocks = 0, length = 0 (MR = 00009BCF)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 55, retries = 0)
mmc0: req done (CMD55): -110: 00000000 00000000 00000000 00000000
mmc0: starting CMD55 arg 00000000 flags 000000f5
Sending command 55 as 00001877, arg = 00000000, blocks = 0, length = 0 (MR = 00009BCF)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 55, retries = 0)
mmc0: req done (CMD55): -110: 00000000 00000000 00000000 00000000
mmc0: starting CMD55 arg 00000000 flags 000000f5
Sending command 55 as 00001877, arg = 00000000, blocks = 0, length = 0 (MR = 00009BCF)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 55, retries = 0)
mmc0: req done (CMD55): -110: 00000000 00000000 00000000 00000000
mmc0: starting CMD55 arg 00000000 flags 000000f5
Sending command 55 as 00001877, arg = 00000000, blocks = 0, length = 0 (MR = 00009BCF)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 55, retries = 0)
mmc0: req done (CMD55): -110: 00000000 00000000 00000000 00000000
mmc0: starting CMD1 arg 00000000 flags 000000e1
Clearing timeout
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Clearing: SR = 0000C0E4
Sending command 1 as 00001841, arg = 00000000, blocks = 0, length = 0 (MR = 00009BCF)
MCI irq: status = 0010C0E4, C07F0001, 00100000
MMC: Response timeout
Completed command
Status = 0010C0E5 [00000000 00000000 00000000 00000000]
Error detected and set to -110 (cmd = 1, retries = 0)
mmc0: req done (CMD1): -110: 00000000 00000000 00000000 00000000
mmc0: clock 0Hz busmode 1 powermode 0 cs 0 Vdd 0 width 0 timing 0
MMC: Setting controller bus width to 1
at91adc: Loaded module
gpiodev: GPIO_DEV Start
eth0: link up (100/Full)

Спуститься к концу Подняться к началу
Персональная информация
AlexShev
Добавлено 01.07.2010 19:38 Сообщение: 9
AlexShev
0

Регистрация: 10.07.2009
Вроде все заработало

Я запаял подтяжки.

Только пришлось сопоставлять схему с распиновкой карточки
http://pinouts.ru/Memory/mmcard.shtml
http://www.starterkit.ru/html/images/products/sch_ico.gif
и
http://www.starterkit.ru/html/uploads/forum/thumb/forum-3aErUL37Ty-7.jpg

чтото там несходится По схеме вобще нельзя понять на какую ножку разйома нужно паять подтяжки.

Но всеже спасибо за дельній совет конце концов он всетаки помог.
Спуститься к концу Подняться к началу
Персональная информация
Pavel Ivanchenko
Добавлено 01.07.2010 19:52 Сообщение: 10
Pavel Ivanchenko
Admin
4.39

Пункты: 92788
Регистрация: 24.03.2009
Пол: Мужчина
А кто сказал, что на SD держателе идет обычный порядок (с лево на право) нумерации пинов ...
Распиновка SD это эволюция MMC, где добавились дополнительные контакты и получилось что 9-ый пин раньше первого ...
Я хотел самого начала фото выложить, для наглядности, как у меня монтируется, но SD карточку для фотоаппарата не нашел.
Спуститься к концу Подняться к началу
Персональная информация
Форум » starterkit.ru » Отладочные платы » SK-AT91SAM9XE512-SIMXXX
